PLASTIC INJECTION
MOLDING & RAPID
TOOLING SERVICES
Complex components, precision pockets, slots and machined surfaces. High-speed 3, 4 & 5-axis CNC milling delivered on-demand with guaranteed sub-micron tolerances.
RAPID TOOLING & INJECTION MOLDING CAPABILITIES
From rapid bridge tooling for market launch to high-cavitation hardened steel production molds with multi-shot overmolding.
Fast Turnaround 10–15 Days
3-Axis Vertical CNC Milling
High-strength 7075-T6 aluminum and P20 pre-hardened steel molds for 100 to 10,000 production-grade plastic parts to validate market design before hard tooling.
- Standard Tolerance: ±0.01 mm (±0.0004")
- Max Work Envelope: 1,200 × 600 × 500 mm
- Spindle Speeds: Up to 15,000 RPM
- Best For: Enclosures, Plates, Brackets
High Volume 1M+ Shots
Production Hardened Steel Molds
H13, S136, and NAK80 hardened steel tooling with hot runner systems for high-cavitation high-volume manufacturing up to 1,000,000+ parts.
- Standard Tolerance: ±0.008 mm
- Max Work Envelope: 800 × 500 × 450 mm
- Rotary Indexing: 360° Continuous A-Axis
- Best For: Cams, Cylindrical Splines, Manifolds
Multi-Material Molding

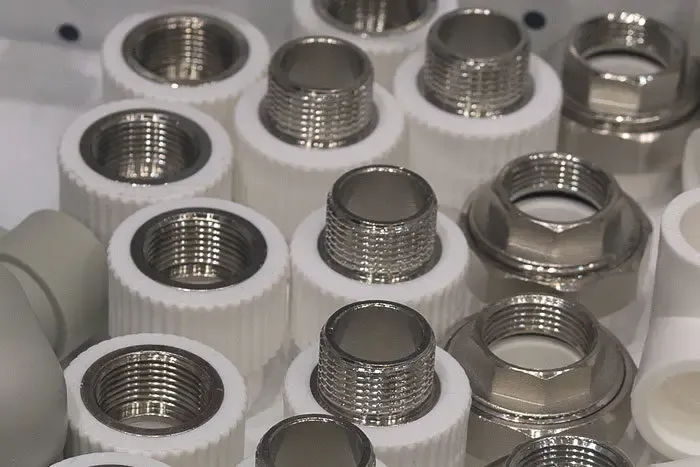

Overmolding & Insert Molding
Two-shot molding (2K) or secondary overmolding of soft TPE/TPU grips over rigid substrates, and threaded metal insert encapsulation.
- Precision Tolerance: ±0.005 mm (5 Microns)
- Max Work Envelope: 650 × 650 × 500 mm
- High-Speed Spindle: Up to 42,000 RPM HSM
- Best For: Turbine Impellers, Medical, Robotics

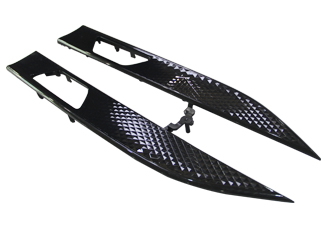

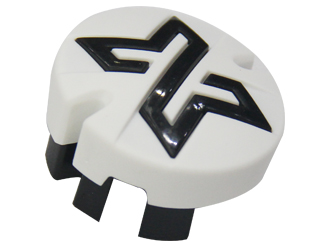

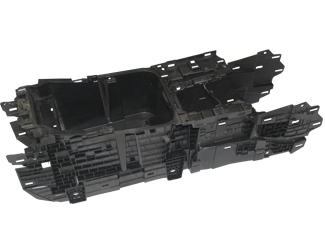

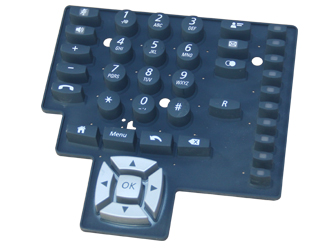

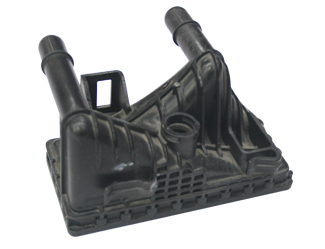

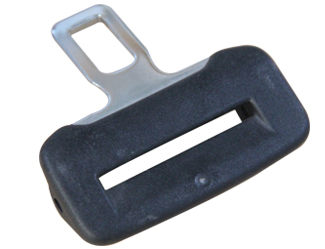

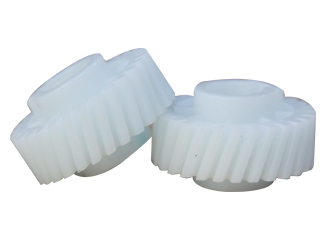

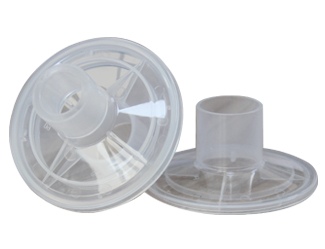

RECENT INJECTION MOLDED PRODUCTION PROJECTS
High-precision plastic bezels, optical housings, and ruggedized overmolded cases manufactured in Shenzhen.
CERTIFIED CNC MILLING MATERIALS
Full raw material mill test certificates (MTR) and traceability provided with every batch. 50+ alloys stocked in-house.
Aluminum Alloys
Optimal strength-to-weight ratio, exceptional machinability, and superior thermal conductivity. Ideal for anodizing and cosmetic finishes.
Stainless Steels
High yield strength, supreme wear resistance, and extreme corrosion resistance for food, medical, and marine applications.
Titanium Alloys
Unrivaled specific strength, extreme temperature resistance, and high biocompatibility for surgical implants and defense hardware.
Engineering Plastics
Dimensional stability, high chemical resistance, and self-lubricating wear properties for precision electrical and fluidic assemblies.
Brass & Copper
Outstanding electrical and thermal conductivity, low friction, corrosion resistance, and spark-free properties for connectors and heat sinks.
Tool & Alloy Steels
Heat-treatable steels engineered for high impact loads, cutting tools, forming dies, and heavy-duty mechanical transmission shafts.
CNC MILLING CAPABILITIES MATRIX
Manufacturing tolerances, axis configurations, and certified work envelope.
| Parameter | Capability & Machine Fleet | Standard Commercial Tolerance | Precision Sub-Micron Tolerance |
|---|---|---|---|
| Axis Configuration | 3-Axis, 4-Axis Indexing, 5-Axis Simultaneous (Makino, Haas, Röders) | ±0.05 mm (±0.002") | ±0.005 mm (±0.0002") |
| Maximum Work Envelope | Up to 2,000 × 1,200 × 800 mm (Large Structural Machining) | ±0.02 mm | ±0.01 mm |
| Spindle Speed Range | 12,000 RPM • 24,000 RPM • 42,000 RPM Ultra-High-Speed HSM | Ra 1.6 μm (63 μin) | Ra 0.4 μm (16 μin Mirror Surface) |
| Raw Material Traceability | Aluminum, Stainless Steel, Titanium, PEEK, Delrin, Brass, Tool Steels | Full MTR batch tracking | 100% Optical & Zeiss CMM Verified |
| Surface Finishing | Bead Blasting, Anodizing (Type II / Type III Hardcoat), Electropolishing, Nickel Plating | MIL-A-8625 / ISO 9001 | Custom Masking for Critical Threads & Bores |
SURFACE FINISHING OPTIONS FOR CNC PARTS
Transform your raw machined components into production-grade hardware with certified functional and cosmetic surface treatments.
Certified Finish Specifications
ISO 9001:2015 Process Controlled| Finish Name | Surface Roughness | Dimensional Impact | Corrosion & Wear | Typical Application |
|---|---|---|---|---|
| As-Machined (Standard) | Ra 1.6 – 3.2 μm | 0 μm (Exact) | Base metal resistance | Internal mechanisms, jigs, non-cosmetic brackets |
| Bead Blasting (120# Glass) | Ra 1.6 μm (Matte) | < 2 μm | Moderate | Eliminates tool marks, smooth satin cosmetic appearance |
| Type II Sulfuric Anodize | Ra 0.8 – 1.6 μm | +5 to 10 μm / side | High corrosion resistance | Consumer electronics, custom colors (Black, Clear, Blue, Gold) |
| Type III Hardcoat Anodize | Ra 0.8 μm | +25 to 50 μm / side | Extreme wear (60+ HRC) | Aerospace sliding guides, hydraulic cylinders, robotics |
| Electroless Nickel Plating | Ra 0.4 – 0.8 μm | +5 to 15 μm uniform | Exceptional chemical wear | Steel and copper precision components, medical valves |
| Optical Mirror Polish | Ra 0.05 – 0.2 μm | Controlled hand polish | High cleanability | Optical reflectors, mold shut-off lands, food contact parts |
VERIFIABLE ZEISS CMM QUALITY CONTROL
Zero-defect manufacturing standard with complete First Article Inspection (FAI) reports and raw material mill certs.
Certified Quality Assurance Standard
- Full CMM Coordinate Measuring & Optical Projector Reports provided with shipments
- Material Test Reports (MTR / Mill Certs) verified for lot chemical & physical properties
-
Strict NDA IP Protection AS9100D Compliance
- In-process tool wear monitoring & First Article Inspection (FAI) sign-off
- Global express shipping with custom protective foam & vacuum packaging
Design for Manufacturability (DFM) Rules for CNC Milling
Adhering to these core CNC milling guidelines reduces cycle time, eliminates costly tool vibration, prevents part deformation, and ensures guaranteed sub-micron tolerances.
1. Minimum Wall Thickness
Recommended minimum wall thickness for metals is 0.8 mm (down to 0.5 mm in local pockets) and for plastics is 1.5 mm to prevent tool chatter, harmonic vibration, and deflection.
Eliminates Deflection2. Internal Corner Radii
Specify an internal radius of R ≥ 1/3 of pocket depth. Sharp 90° vertical internal corners cannot be machined by round end mills and require slow, expensive EDM wire burning.
Reduces Cost 30%3. Pocket Depth Ratios
Keep deep cavities within ≤ 4× the milling tool diameter. Cavities deeper than 4× require long tool reach, which slows chip evacuation and increases surface roughness.
Prevents Tool Breakage4. Hole Depth & Tapping
Standard drill depths should be ≤ 5× diameter. For tapped holes, an effective thread depth of 1.5× to 2× diameter provides 100% of fastener pull-out strength.
Full Fastener Holding5. Standard Tool Sizes
Design internal fillets and radius sizes to match standard metric end-mill sizes (e.g. 1mm, 2mm, 3mm, 6mm, 10mm). Custom tool grinding adds unnecessary setup lead time.
Off-the-Shelf Speed6. Edge Chamfers vs Radii
Specify 45° chamfers rather than rounded edge radii on top part perimeters. Chamfers can be cut with a standard spot drill or chamfer mill in a single pass.
Cuts Cycle TimeFrequently Asked Questions about CNC Milling
What machine axes do you operate for milling?
We operate 3-axis high-speed machining centers, 4-axis rotary indexers, and continuous 5-axis simultaneous CNC machines (Makino, Haas, Röders) with spindle speeds up to 42,000 RPM.
Can you hold ±0.005mm tolerances on production batches?
Yes. In our temperature-controlled machining facilities (20°C ±0.5°C), we routinely hold sub-micron tolerances down to ±0.005mm verified on Zeiss coordinate measuring machines.
What CAD formats provide the fastest and most accurate quote?
We recommend STEP (.stp, .step) or Parasolid (.x_t) paired with a 2D PDF drawing detailing critical tolerances, tapped threads, and surface roughness requirements.
What is your Minimum Order Quantity (MOQ)?
We have no MOQ requirement. We manufacture single-piece rapid functional prototypes (1 pc) up to high-volume pilot production runs (10,000+ pcs).
Ready to Machine Your High-Precision Parts?
Upload your 3D CAD model (STEP, IGES, X_T, DXF). Our senior machining engineers will provide a comprehensive DFM and instant quote within 2 hours.
